Schneider electric connector 16a p n met faschneider select bevei kbc16dcf21

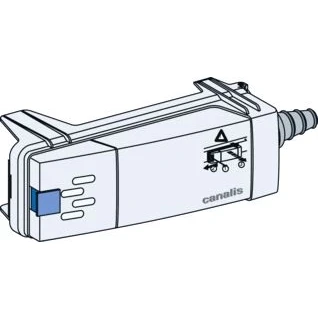

Canalis tap-off unit for KBA and KBB. It applied to lighting with cream RAL 9001 surface treatment. The operational voltage is from 230VAC 50/60Hz to 240VAC 50/60Hz. The rated operational current is 16A at 35 ââÆ. It provided L + N + PE and L2 + L1 + L3 + N + PE busbar trunking polarity L1 + N + PE/L2 + N + PE/L3 + N + PE tap-off unit polarity and phase selection connector. Sold in lots of 10 units. It provides IP55 protection which conforming to IEC 60529 standard. It is compliant with both IEC 60439-2 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).
