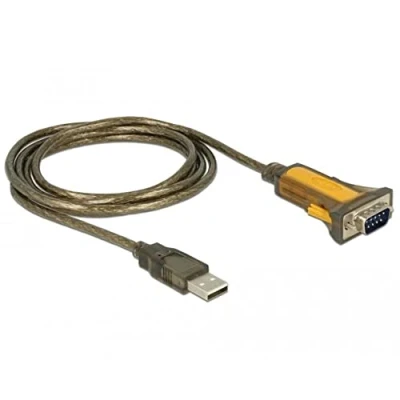

Delock Adapter USB 2.0 Type A male>1 x Serial RS 232 DB9 extended temperature range

Onlinekabelshop.nl

Description This USB Type-A to serial adapter by Delock provides an RS-232 port for meters, POS systems, printers, modems, IoT devices, etc. and fulfills also the requirements in an extended operating temperature range of -40°C up to 85 °C. Specification • Connectors: 1 x USB 2.0 Type-A male>1 x serial RS-232 DB9 male with screws• Chipset: FTDI FT232• Screw type: #4-40 UNC• Compatible with USB 2.0, and USB 1.1 full speed 12 Mbps• Data transfer rate up to 460.8 Kb/s• Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND• Parity: even, odd, none, mark, space• Stop bits: 1, 2• Databits: 7, 8• Flow control: none, Xon / Xoff, RTS / CTS• FIFO: 128 Byte - RX• FIFO: 256 Byte - TX• Current consumption: ca. 20 mA• Extended temperature range: -40 °C ~ 85 °C• Cable length incl. connectors: ca. 1.5 m System requirements • Windows 7/7-64/8.1/8.1-64/10/10-64/11, Linux ex Kernel 2.4, Mac ex OS 10.9• PC or laptop with a free USB Type-A port Package content • USB 2.0 to 1 x serial adapter• Driver CD• User manual

Amazon

Aansluitingen: 1 x USB 2.0 type-A stekker > 1 x RS-232 DB9 stekker met schroeven Chipset: FTDI FT232 Type schroef: #4-40 UNC Compatibel met USB 2.0 en USB 1.1 full speed 12 Mbps Gegevensoverdrachtsnelheid tot 460,8 Kb/s

Conrad

Deze USB type-A naar seriële adapter van Delock biedt een RS-232-aansluiting voor meetapparaten, POS-systemen, printers, modems, IoT-apparaten, enz. en voldoet bovendien aan de eisen voor een...
