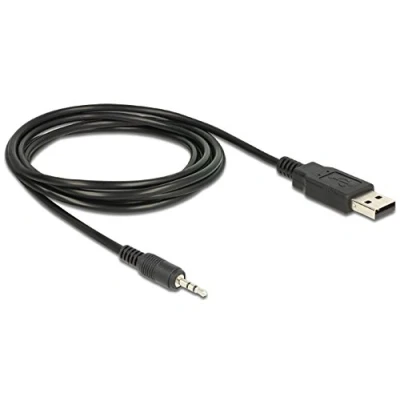

Delock kabel USB TTL stekker > 2.5 mm 3 pin jack 1.8 m (5 V)

Description This USB TTL converter by Delock is due to its wide temperature range most suitable for industrial applications. It can be used for e.g. level converter, GPS-modules, interface controller, micro controller etc. Specification • Connector: USB 2.0 type A male TTL male > 2.5 mm 3 pin stereo jack male• Pin assignment: 1. TXD 2. RXD 3. GND• Chipset: FTDI 232RL• Cable gauge: 26 AWG• Temperature range: -20°C to +80°C• No-load current: 70 uA• Converter: 5 V / 15 mA (VCC, GND)• Compatible to UHCI / OHCI / EHCI controller• TTL 5 V (data) / 4 mA or HighLevel 12 mA• Data transfer rate up to 3 Mbps• Databit: 7 or 8• Stoppbits: 1 or 2• Parity: none, space, even, odd, mark• Flow control: software XON/XOFF or hardware RTS / CTS• FIFO: 128 Byte – RX 256 Byte – TX• Cable length: ca. 1.80 m System requirements • Windows XP/XP-64/Vista/Vista-64/7/7-64/8.1/8.1-64/10/10-64/11, Windows CE 4.2, 5.0, 6.0, Mac OS 10.5, 10.6, Mac OS ex 10.9, Linux ex Kernel 2.6• PC or laptop with a free USB type A port Package content • USB TTL cable• Driver CD• User manual
