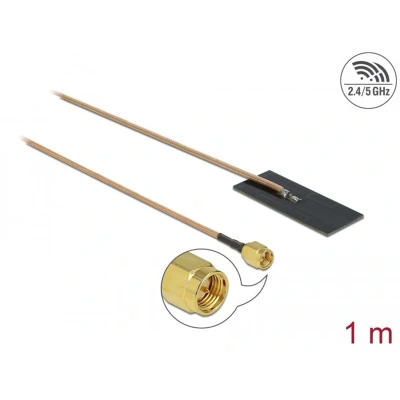

Delock WLAN 802.11 ac/ax/a/h/b/g/n Antenna SMA plug 0.5 1.2 dBi RG 178 1 m PCB internal self adhesive

Description This antenna by Delock allows the usage of the 2.4 GHz + 5 GHz WLAN bands indoors. Specification • Connector: 1 x SMA plug • Frequency range: 2400 MHz - 2500 MHz 5150 MHz - 5875 MHz • Bluetooth, WLAN 2.4 / 5.0 GHz, ZigBee 2.4 GHz, ISM • Antenna gain: 0.5 - 1.2 dBi • VSWR: 2.5 • Impedance: 50 Ohm • Mounting type: self adhesive • Operating temperature: -10 °C ~ 55 °C • Housing material: FR4 • Colour: black • Cable type: coaxial • Cable type: RG-178 • Cable colour: black • Cable diameter: ca. 1.8 mm • Cable attenuation: 2.9 dB @ 2.4 GHz per meter • Smallest bending radius: 7.5 mm • Dimensions (LxW): ca. 40.00 x 14.65 mm • Cable length incl. connector: ca. 1 m System requirements • Device with one free SMA port Package content • Antenna

DELOCK WLAN 802.11 ac/ax/a/h/b/g/n antenne SMA stekker 0,5-1,2dBi RG-178 1m PCB interne kleefmontage
