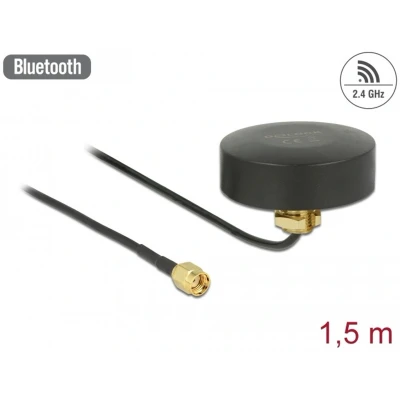

Delock WLAN 802.11 b/g/n Antenna RP SMA plug 2 dBi fixed omnidirectional with connection cable RG 174 1.5 m outdoor black

Description This antenna by Delock allows the usage of the 2.400 GHz band indoors and outdoors. Specification • Connector: 1 x RP-SMA plug • Bluetooth, WLAN 2.4 GHz, ZigBee 2.4 GHz, ISM 2.4 GHz • Frequency range: 2.400 - 2.500 GHz • Antenna gain: 2 dBi • Impedance: 50 Ohm • Polarisation: linear, vertical • VSWR: 2.0 • Operating temperature: -40 °C ~ 85 °C • Screw-on mounting • Screw type: M16 • Thread length: 10 mm • Mounting hole diameter: 12 mm • Colour: black • Cable type: coaxial • Cable type: RG-174 • Cable colour: black • Cable length incl. connectors: ca. 1.5 m • Transmission power: 50 W • Dimensions (Ø x H): ca. 46.0 x 15.4 mm System requirements • Device with a free RP-SMA jack Package content • Antenna

Outdoor WLAN antenne met RP-SMA stekker en RG-174 kabel van 1,5 meter voor 2,4 GHz toepassingen. Geschikt voor 50 ohm radiofrequentiesystemen.
