Delock WLAN dubbele antenne 2 x MHF® 4L aansluiting 802.11 ac/a/h/b/g

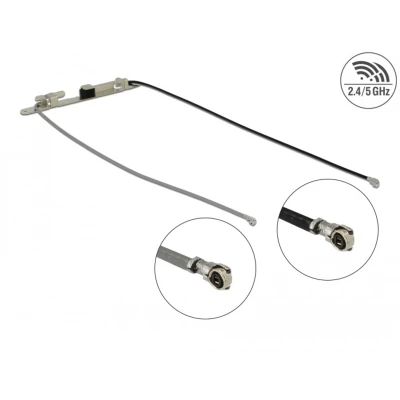

Description This antenna by Delock allows the usage of the 2.4 GHz + 5 GHz WLAN bands indoors. Specification • Connector: 2 x I-PEX Inc., MHF® 4L plug• Frequency range: 2400 - 2500 MHz 5150 - 5850 MHz• Bluetooth, WLAN 2.4 / 5.0 GHz, ZigBee 2.4 GHz, ISM• Antenna gain: 2400 - 2500 MHz: 1.12 dBi 5150 - 5850 MHz: 3.18 dBi• Impedance: 50 Ohm• Polarisation: linear, vertical• Mounting type: screw mounting or self adhesive• Operating temperature: -10 °C ~ 55 °C• Housing material: FPC• Colour: black• Cable type: coaxial• Cable type: 1.13• Cable colour: black / grey Black: 2.4 GHz Grey: 5.0 GHz• Cable diameter: ca. 1.13 mm• Cable attenuation: 3.2 dB @ 2.4 GHz per meter• Smallest bending radius: 4.5 mm• Cable length incl. connectors: 2 x ca. 15 cm• Length incl. connectors (L): ca. 36 cm• Dimensions (LxWxH): ca. 50 x 5 x 5 mm System requirements • Device with two free I-PEX Inc., MHF® 4L connectors Package content • Antenna

Uitvoering: staafantenne Antennetype: WLAN Toepassing: binnen Versterking: 3, 18 dB Aansluiting: MHF
