LTE antenne Delock

Onlinekabelshop.nl

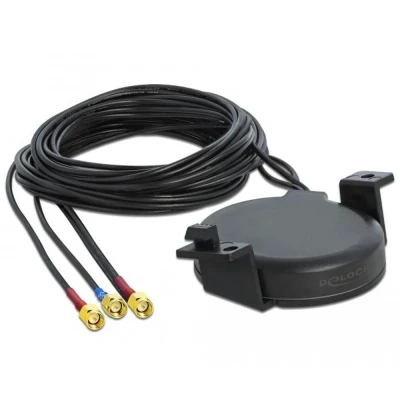

Description This antenna by Delock allows the usage of different LTE and GNSS bands indoors and outdoors. It is completely compatible to GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, GNSS, Bluetooth, ISM, MIMO and LoRa 868 MHz / 915 MHz. Specification• Connectors: 3 x SMA plug• 2 x LTE: Frequency range: 698 MHz - 960 MHz 1710 MHz - 2690 MHz Impedance: 50 Ohm VSWR: 3.0 Antenna gain: 2.0 - 2.5 dBi Polarisation: linear• GNSS: Frequency range: GALILEO: E1, 1575.4200 MHz GPS: L1, 1575.4200 MHz Antenna gain: 2 dBi VSWR: 1.5 Impedance: 50 Ohm Polarisation: RHCP• LNA GNSS: Frequency range: GALILEO: E1, 1575.4200 MHz GPS: L1, 1575.4200 MHz Antenna gain: 28 dBi Operating voltage: 2.2 - 5.0 V Current consumption: 5 - 15 mA VSWR: 2.0 Impedance: 50 Ohm• Mounting type: screw mounting• Operating temperature: -40 °C ~85 °C• Housing material: ABS• Protection class: IP67• Colour: black• Cable type: coaxial• Cable type: RG-174• Cable colour: black• Cable diameter: ca. 2.7 mm• Cable attenuation: 1.5 dB @ 1.5 GHz per meter• Smallest bending radius: 10.5 mm• Cable length incl. connector: ca. 3 m• Dimensions (Ø x H): ca. 81.3 x 16.3 mm System requirements • Device with multiple free SMA ports Package content • Antenna

Allekabels

Type: RG-174, Impedantie: 50 Ohm, Aansluiting: 3x SMA stekker, Versterking: 2,5 dBi, Frequentie: 698 ~ 2690 MHz

Amazon

Delock LTE MIMO GNSS Antenne 3 x SMA Plug RG-174 3m Schroefmontage Outdoor Zwart

Bol Partner

DeLOCK 12700. Lengte: 3 mm, Hoogte: 16,3 mm
