U.2 SFF 8639 naar M.2 NGFF adapter Delock

Bol Partner

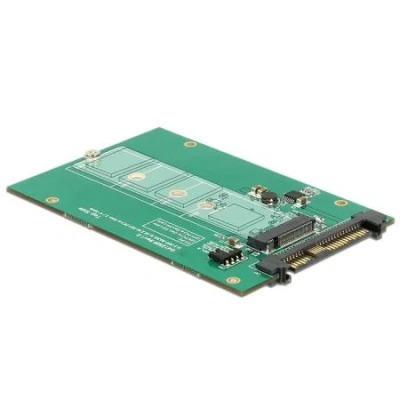

Description This Delock converter enables the connection of a M.2 SSD in 2280, 2260 and 2242 format. The converter can be installed into your system internally through the U.2 68 pin interface. Specification • Connectors: 1 x U.2 SFF-8639 male > 1 x 67 pin M.2 key M slot• Interface: PCIe x4 Rev. 4.0• Supports M.2 modules in format 2280, 2260 and 2242 with key M or key B+M based on PCIe• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported• Supports NVM Express (NVMe)• Maximum output power: 16.5 Watt (3.3 V / 5 A)• Dimensions (LxWxH): ca. 100 x 70 x 7 mm• OS independent, no driver installation necessary System requirements • Windows 7/7-64/8.1/8.1-64/10/10-64/11• A free U.2 SFF-8639 interface or• A free SFF-8643 interface Package content • Converter• 2.5″ frame• 1 x fixing screw for M.2 module• 4 x screws for frame• User manual

Allekabels

U.2 SFF-8639 naar M.2 NGFF adapter, Extra: 2.5″ bracket formaat, Aansluiting 1: U.2 SFF-8639 Male, Aansluiting 2: 67-Polig M.2 NGFF Key M slot, Snelheid: 6 Gbps, Afmetingen (LxBxH): 100 x 70 x 7mm.

Amazon

Aantal verpakkingen: 1 Verpakkingsgewicht: 80 g Afmetingen verpakking (L × B × H) : 3,4 zm 10,6 zm 14,8 zm
